Profiles

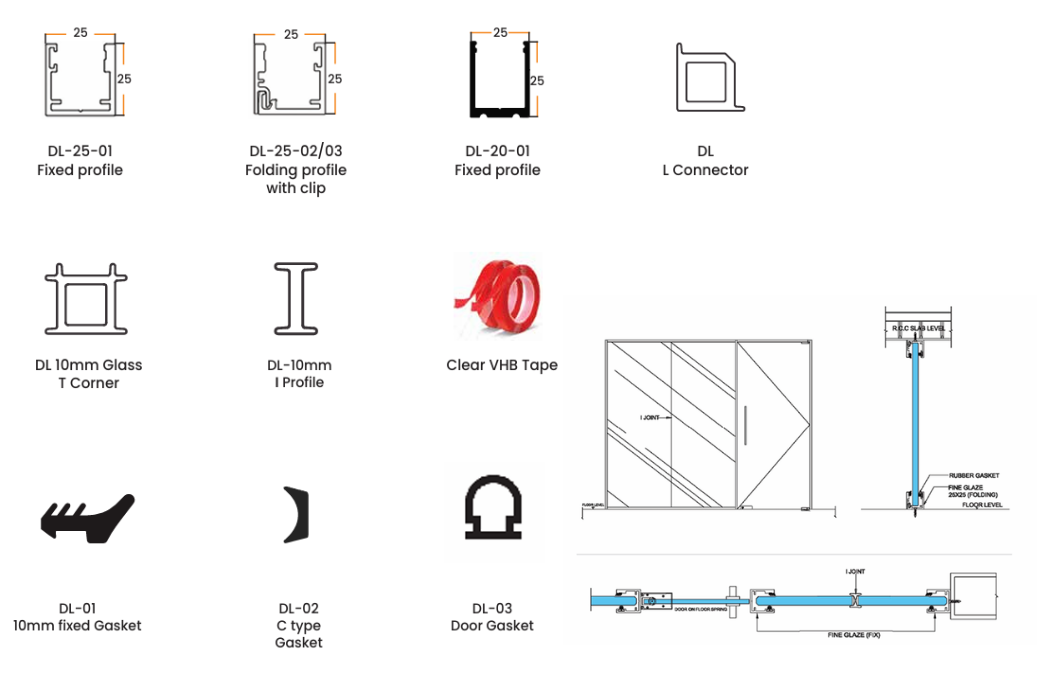

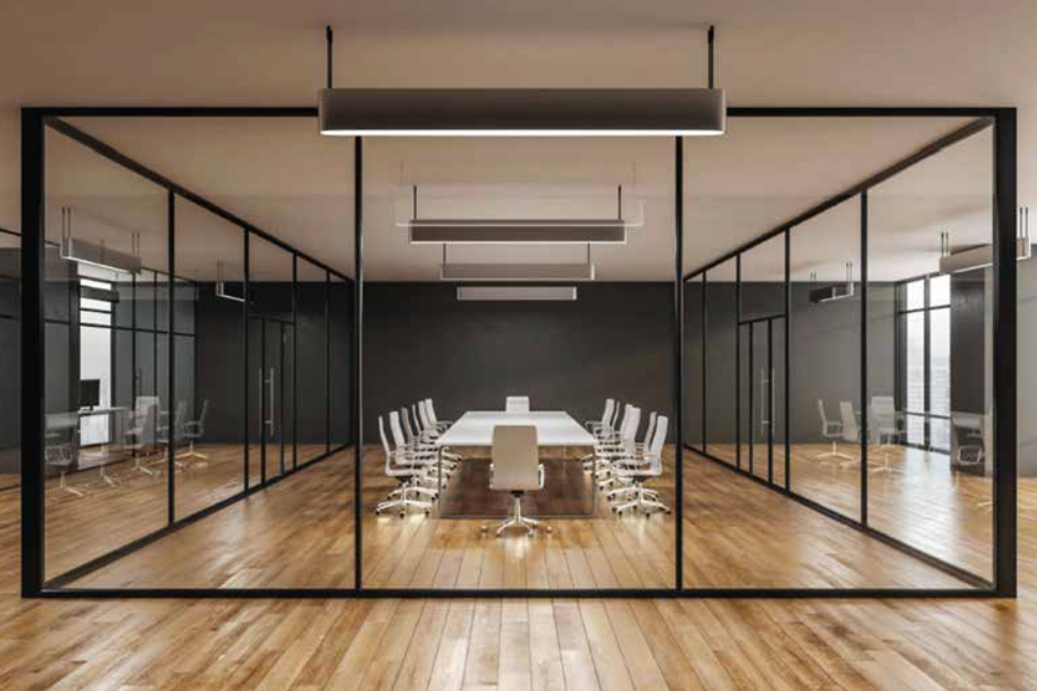

The D Line Glazed Partition Series 25 is a sleek and lightweight aluminium partition system built on a 25x25 mm profile. It offers a modern and minimal look suitable for various glass applications, providing an aesthetic yet economical interior solution.

Key Features

• Profile Dimension: 25 mm x 25 mm
• Glass Compatibility: Supports both toughened and laminated glass from 8 mm to 12 mm thick
• Partition Height Range: 2100 mm to 3000 mm
• Glazing Type: Single glass configuration
• Door Options: Compatible with floor spring glass doors, rebated glass doors, stile doors, and flush doors

The Slim Glaze demountable partition system is the industry standard and most widely used system. Slim Glaze provides a modern and sleek aesthetic and can also accommodate a variety of door options. It is possible to fabricate a grid glass partition with intermediate members.

Key Features

• Section Variants (height x width): 25x45mm
• Matt Silver and Matt Black anodised finish available, other finishes available on request
• Glass Supported: 8, 10 and 12mm thickness
• Single Glazing System
• Acoustical Insulation: 32 dB
• Stable up to a height of 3000mm
• Available: Grid Partition, Curved Partition and Brooklyn System and flush doors

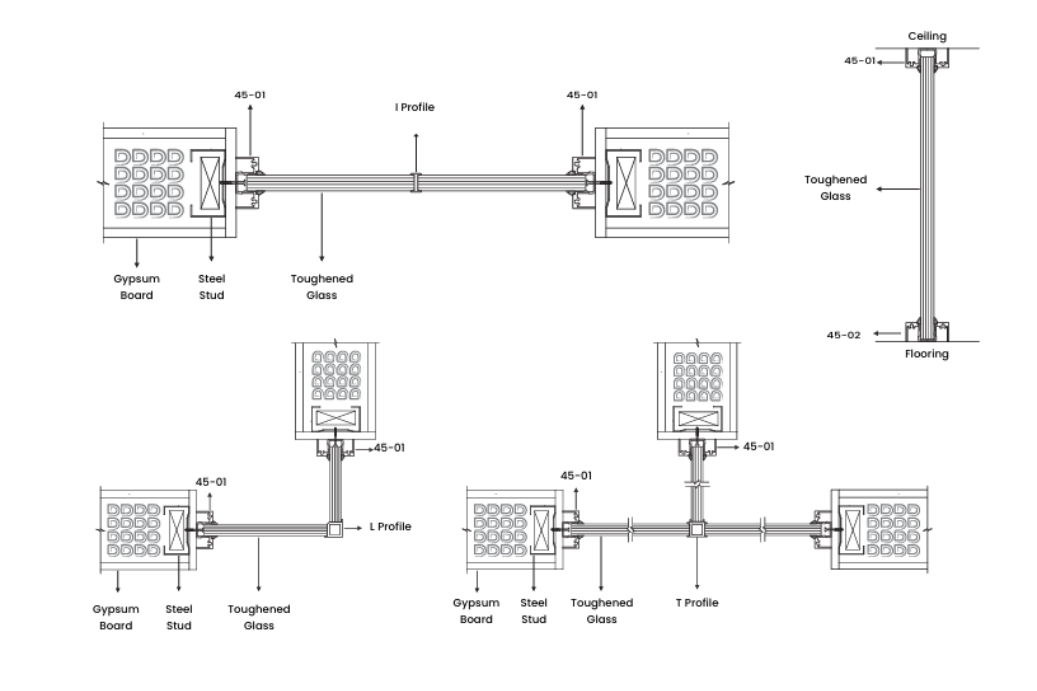

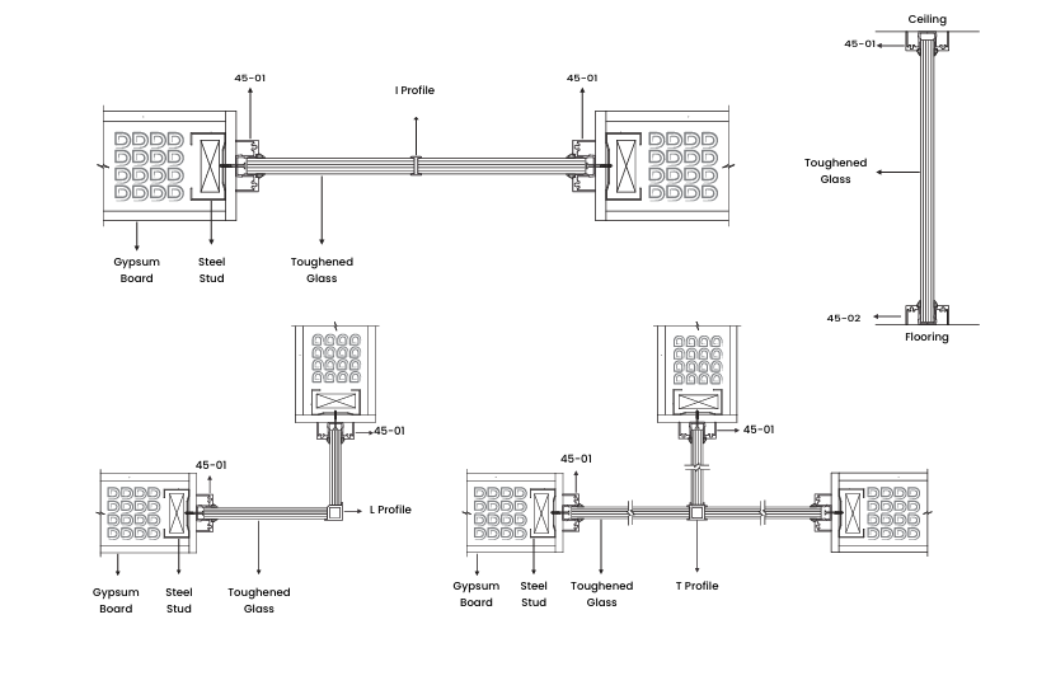

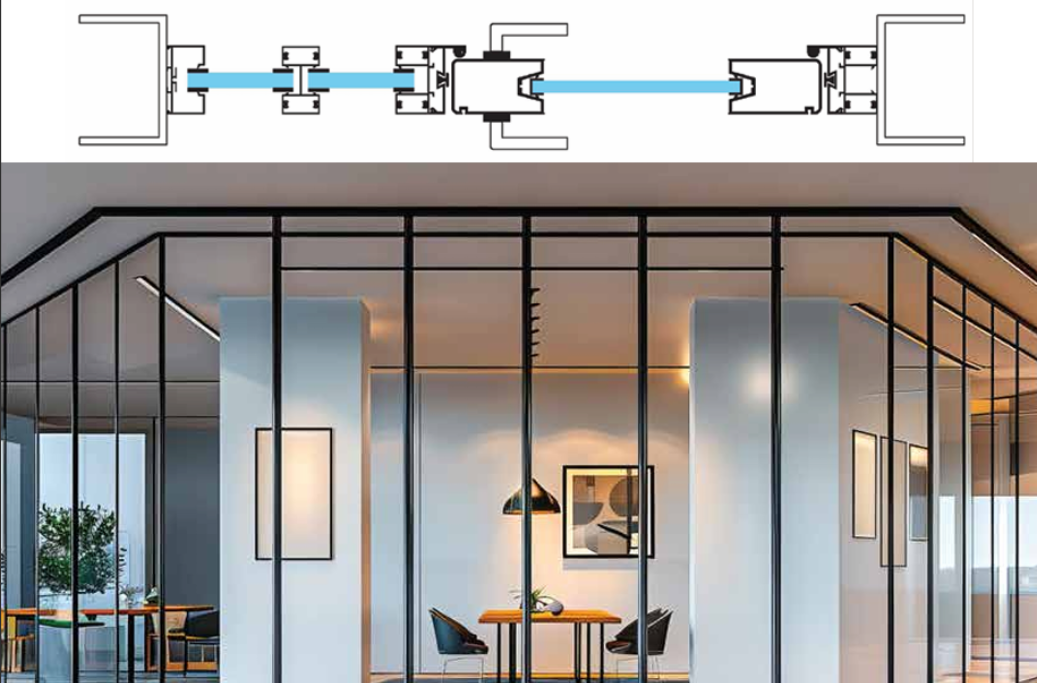

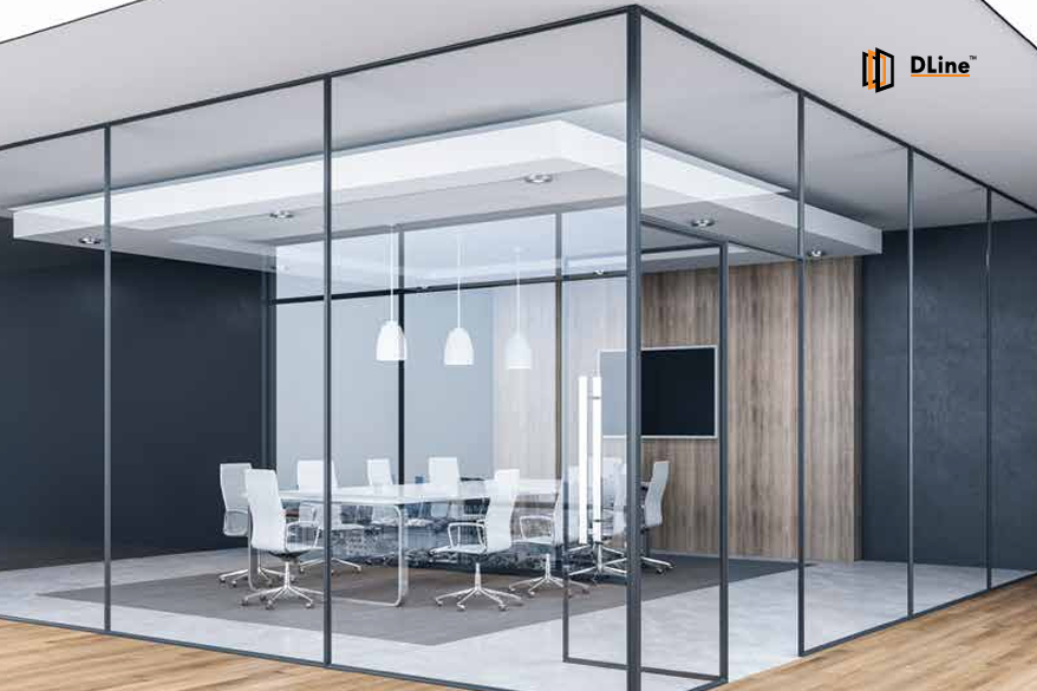

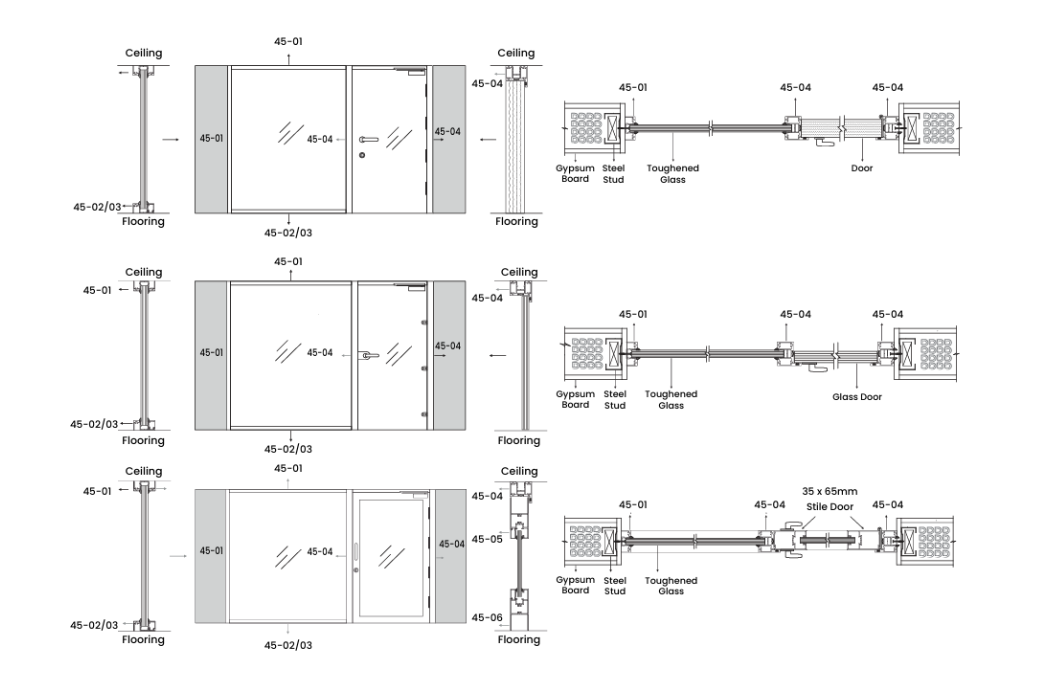

The 45 Series partition system is engineered for strong structural stability and refined aesthetics, making it ideal for modern interiors that require durability, flexibility, and clean architectural lines.

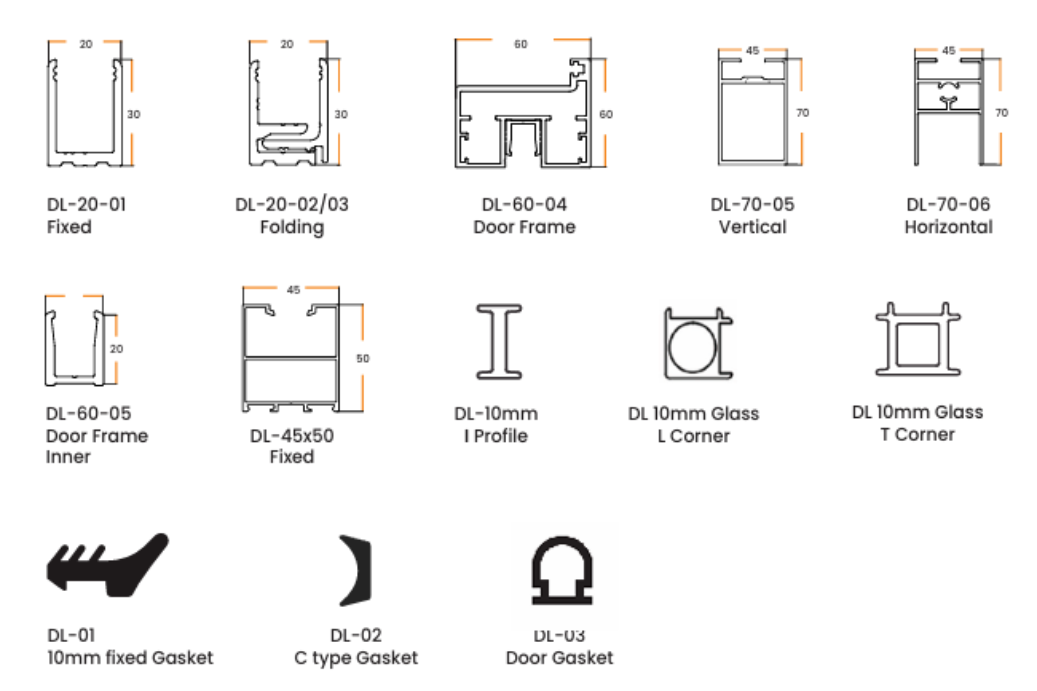

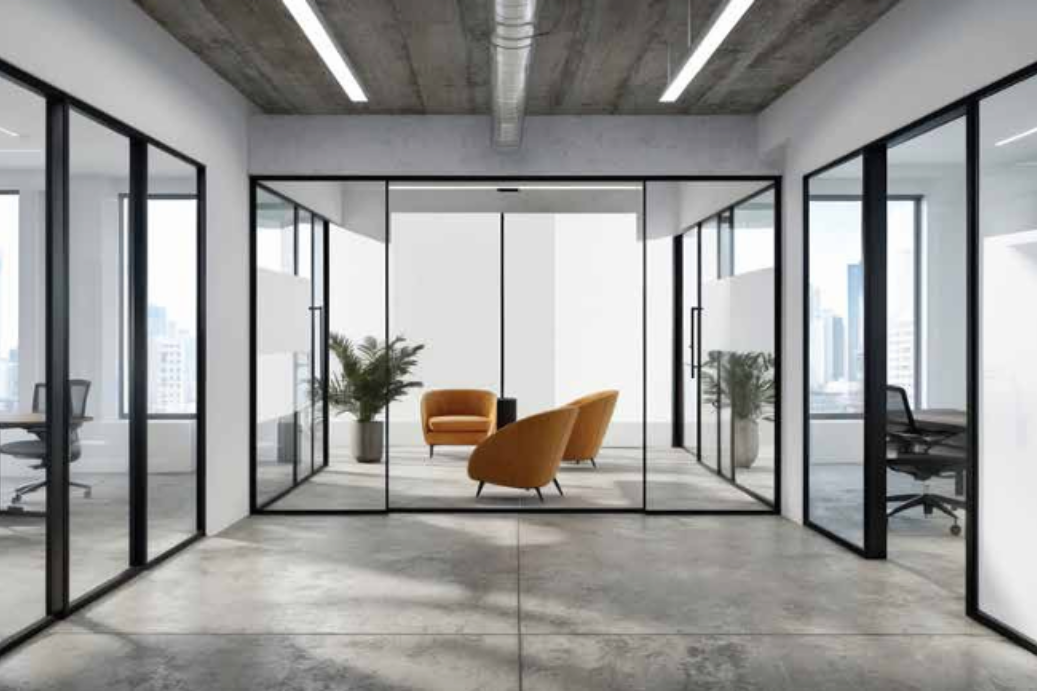

High Line is developed for projects that demand elegant detailing and strong system reliability, delivering premium aesthetics with functional flexibility for modern work and living environments.

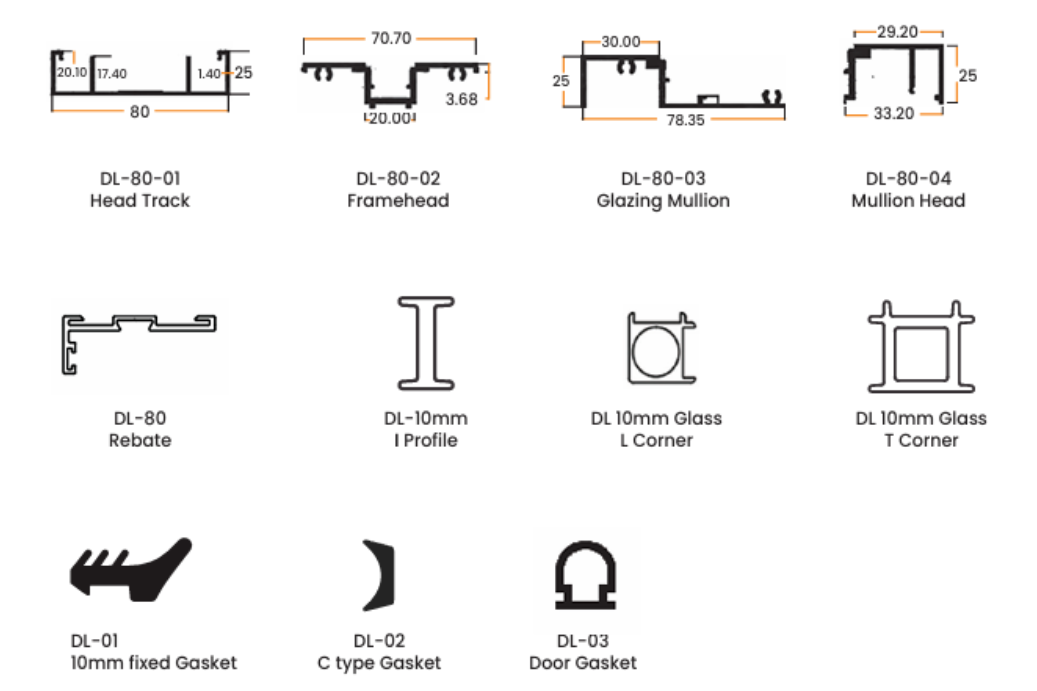

The Ultra Glaze demountable partition system is offers a bold, strong look designed to nullify any undulations that occur in adjacent gypsum partition. These gypsum partitions are of 75mm width as an industry standard and tend to never be straight edged which steals from the aesthetics of the partition system.

Key Features

• Section Variants (height x width): 25x80mm
• Matt Silver and Matt Black Anodised Finish available, other finishes available on request
• Glass Supported: 8, 10 and 12mm thickness
• Single Glazing System
• Acoustical Insulation: 32 dB
• Stable up to a height of 3000mm
• Available - Grid Partition and Brooklyn System

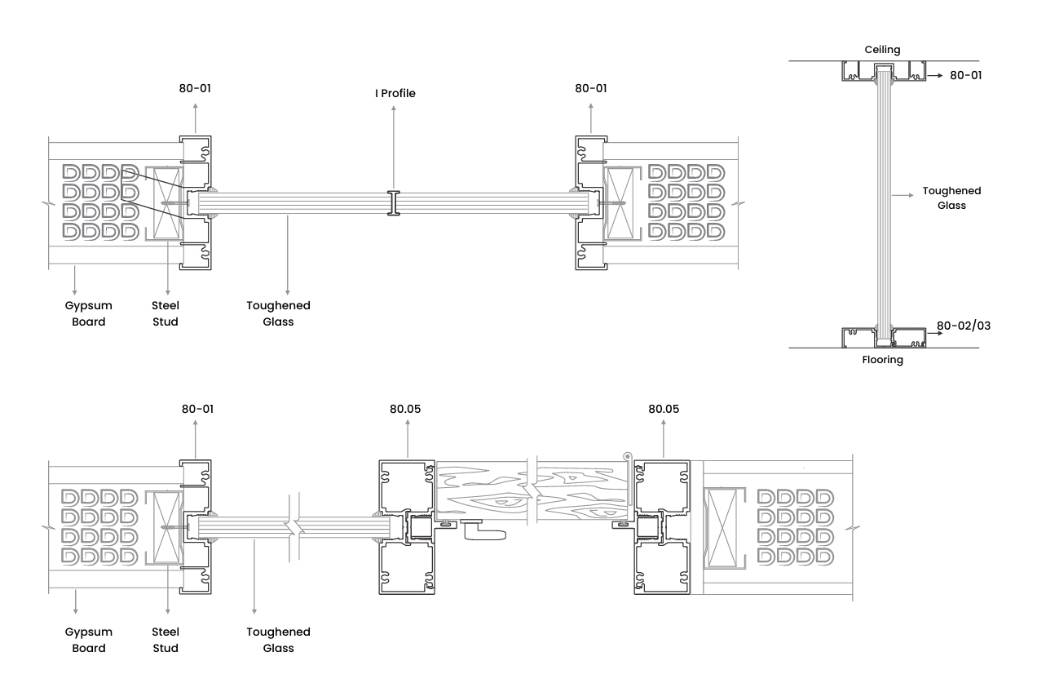

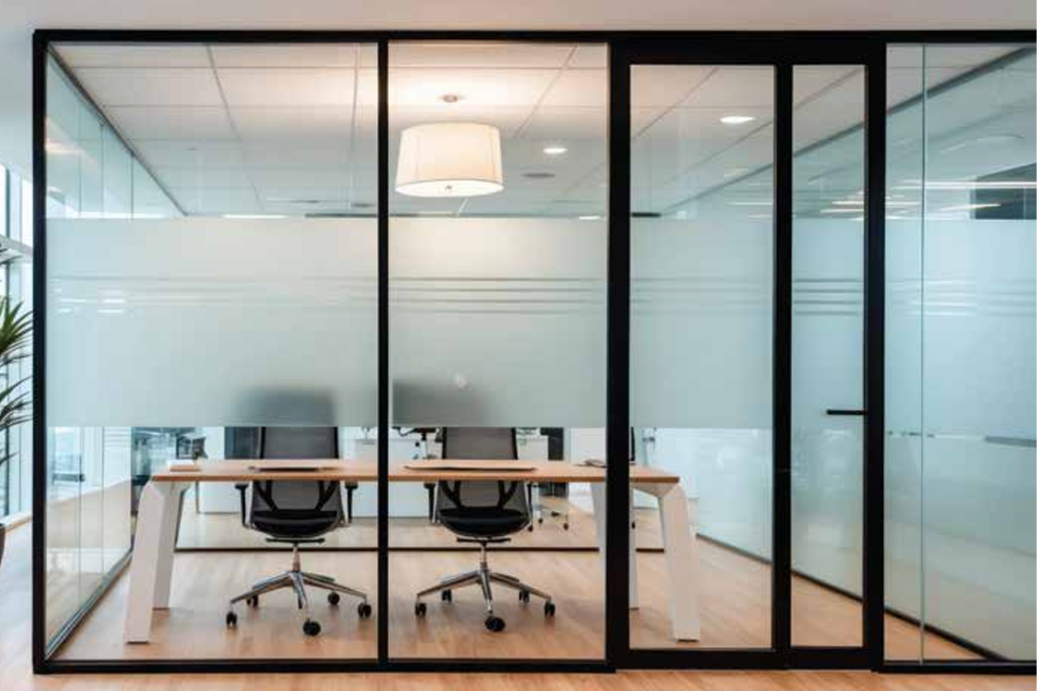

The 80 Series partition system is designed for projects that require stronger framing, enhanced stability, and a refined finish. It is ideal for high-traffic commercial environments where durability and aesthetics are equally important.

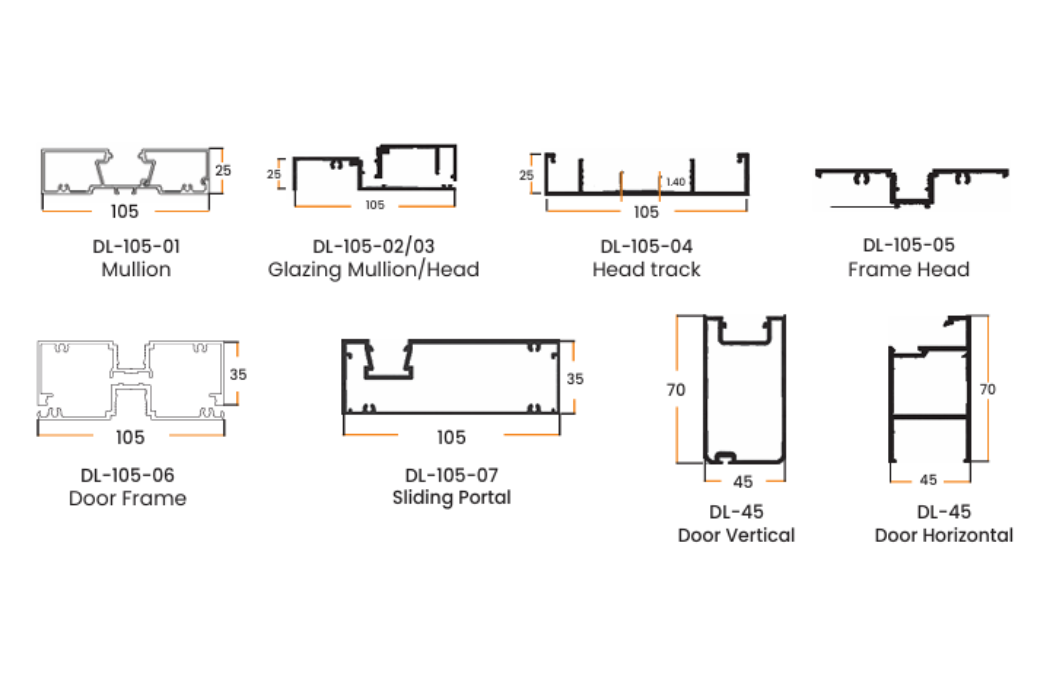

The Wide Glaze demountable partition system offers the best strength and sturdiness and is to be used when glazing height breaches 3000 mm or if a heavy look and rigid structure is desired.

Key Features

• Section Variants (height x width): 25x105mm
• Matt Silver and Matt Black Anodised Finish available, other finishes available on request
• Glass Supported: 8, 10 and 12mm thickness
• Single Glazing System
• Acoustical Insulation: 32 dB
• Stable up to a height of 3000mm

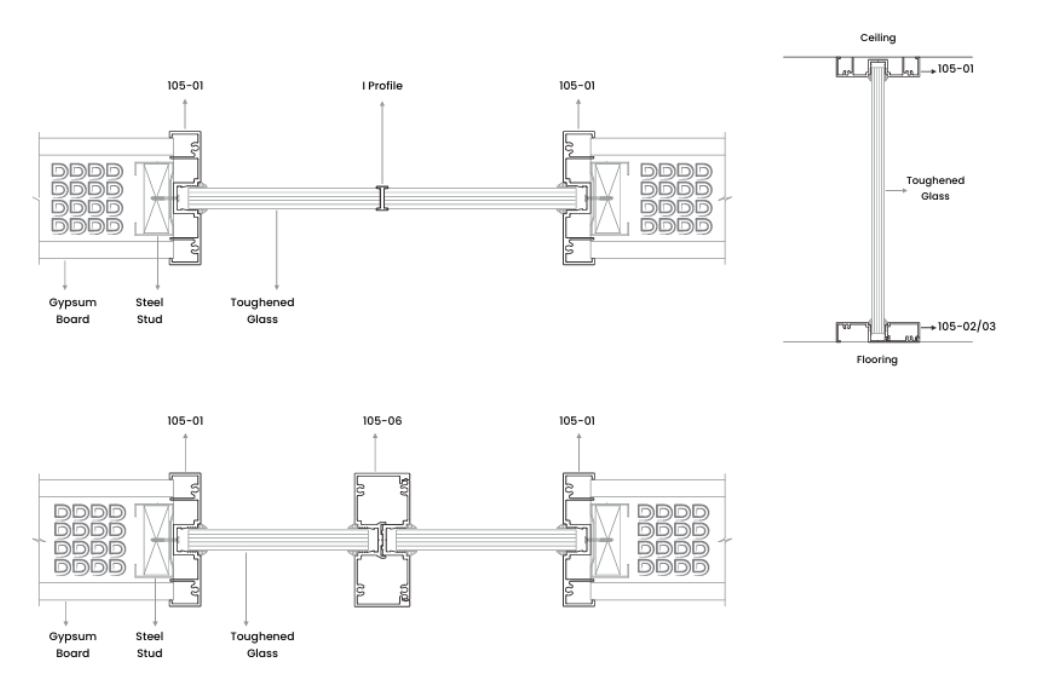

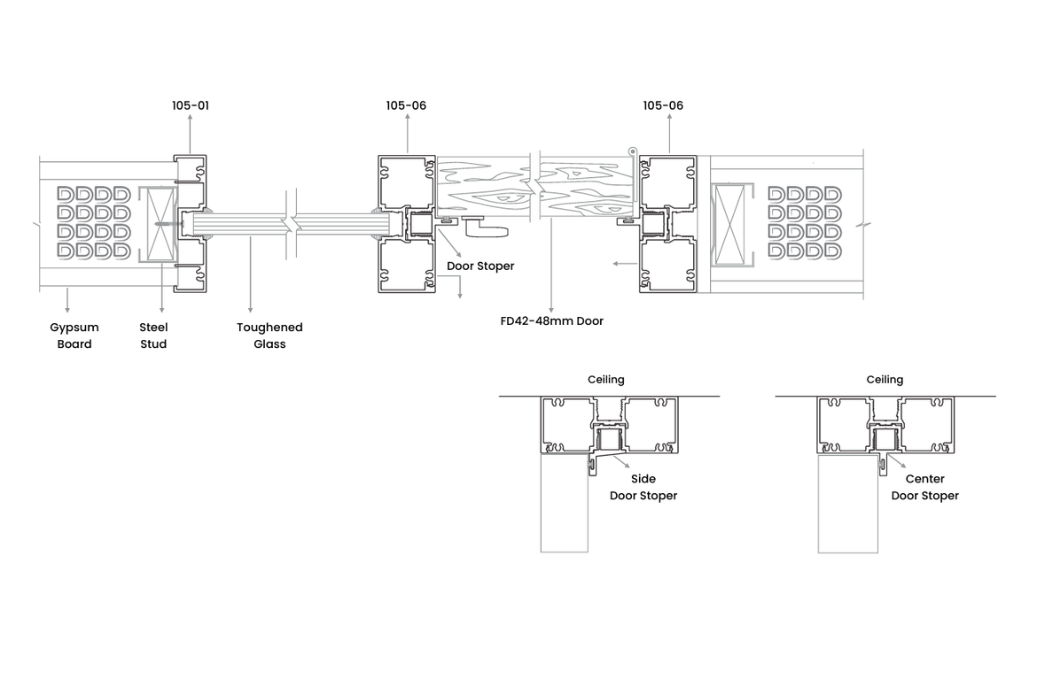

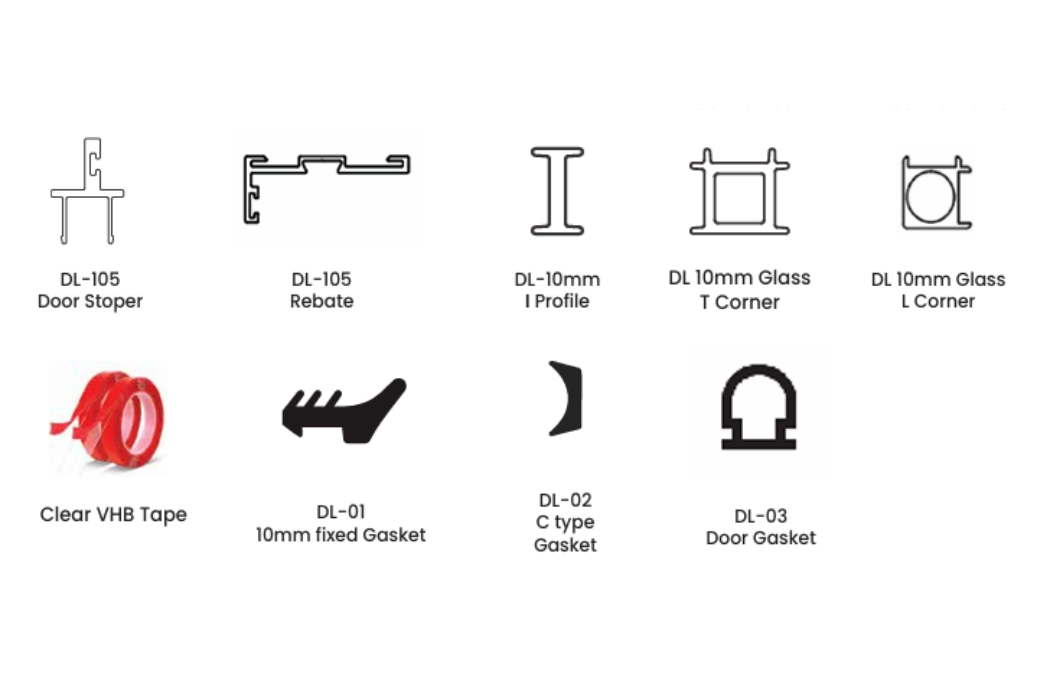

The 105 Series is designed for projects that demand heavier partition framing, superior rigidity, and premium finish quality while maintaining design flexibility for modern interiors.

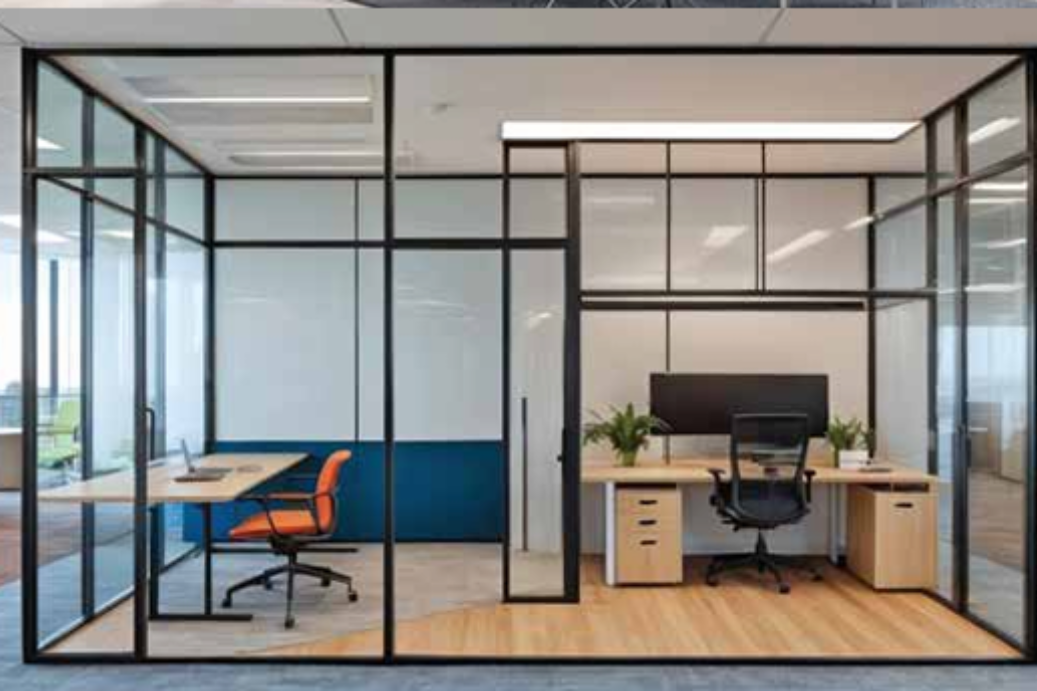

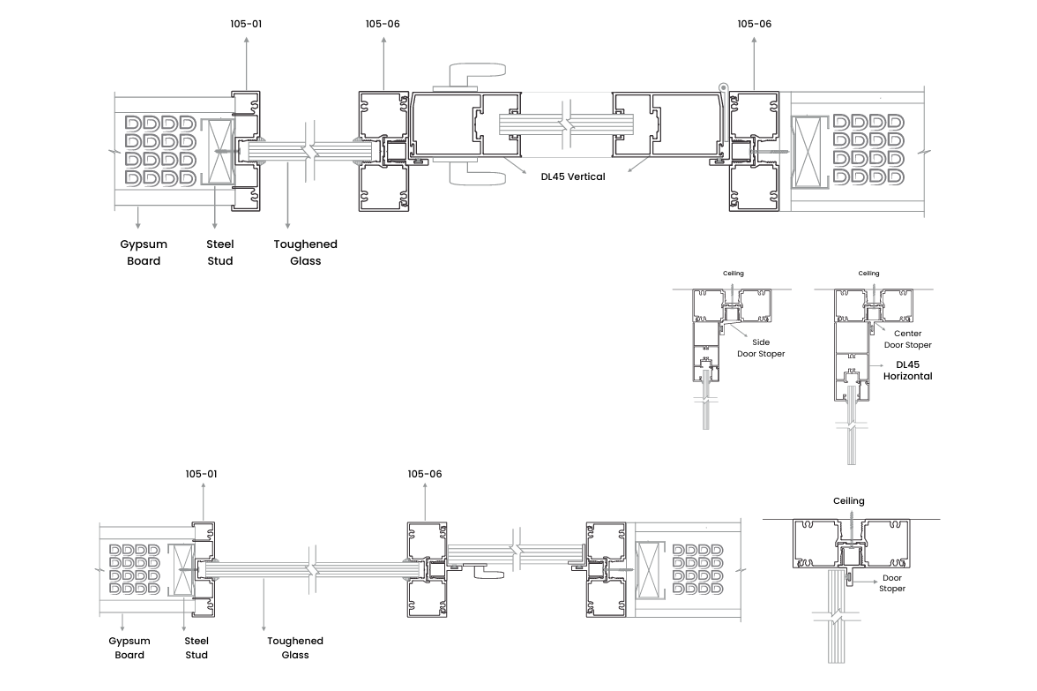

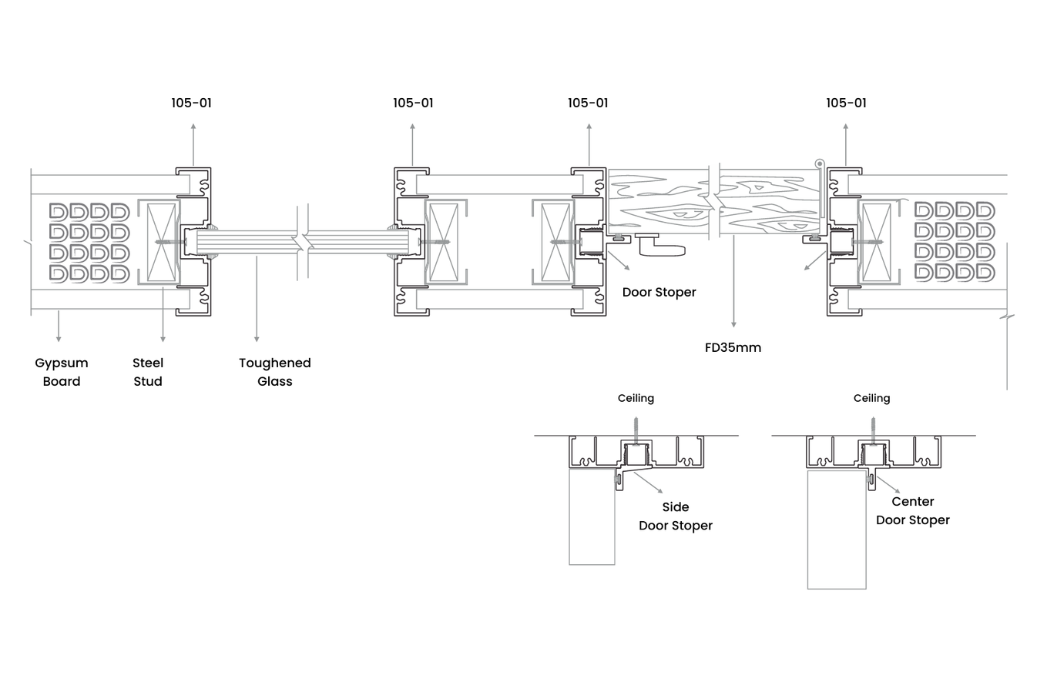

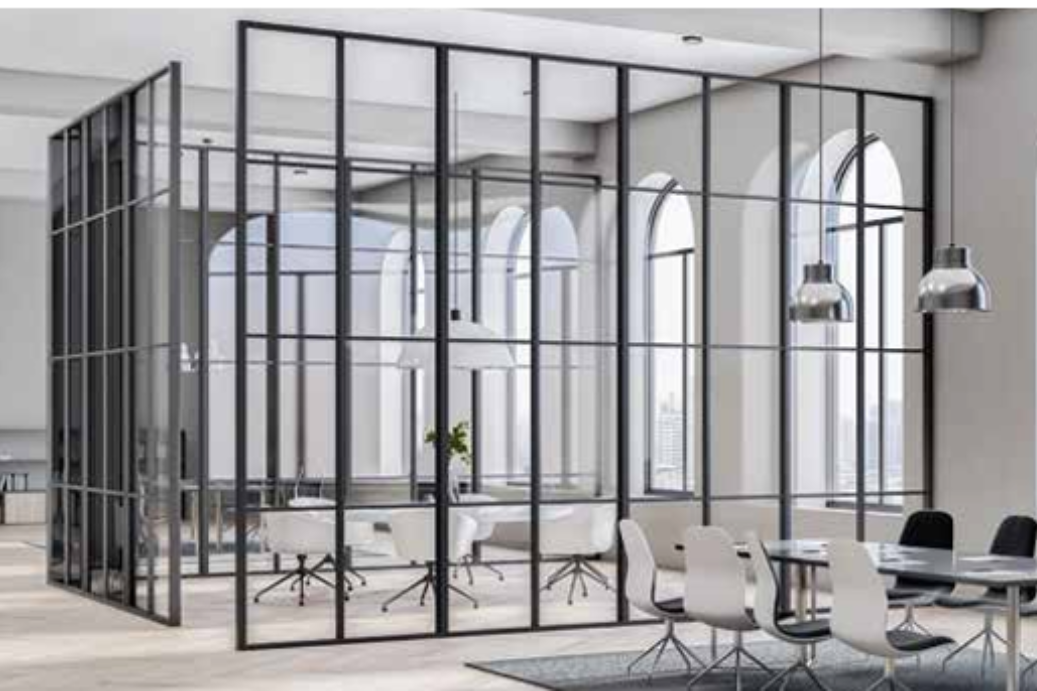

An advanced 105 Series partition variant developed for high-performance interiors, offering strong framing support, robust detailing, and a refined visual profile across larger installations.

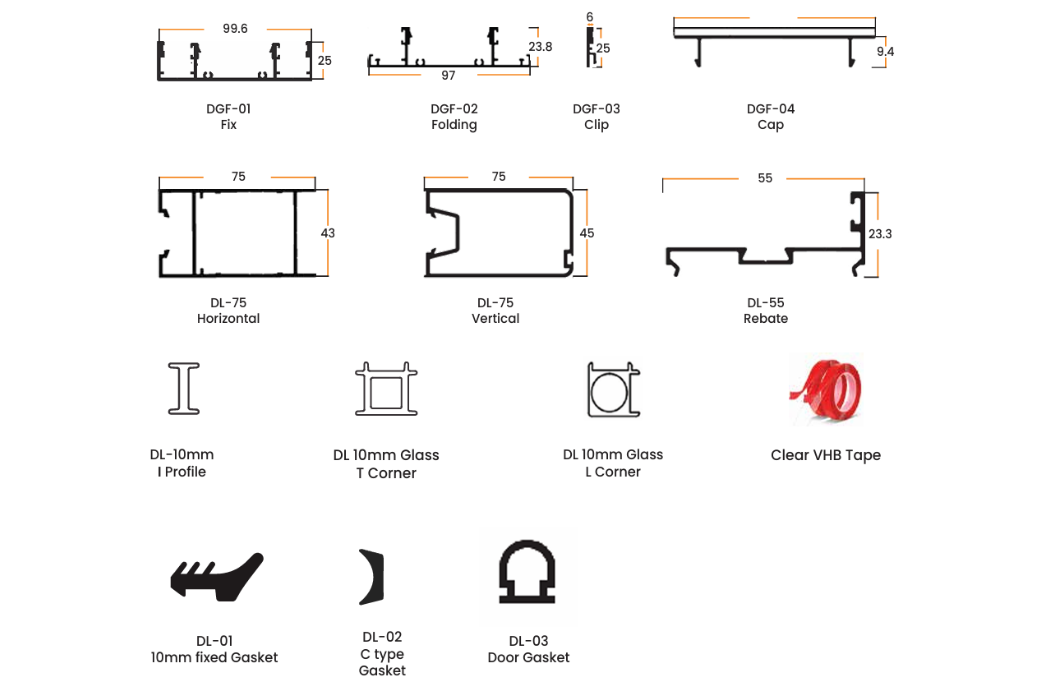

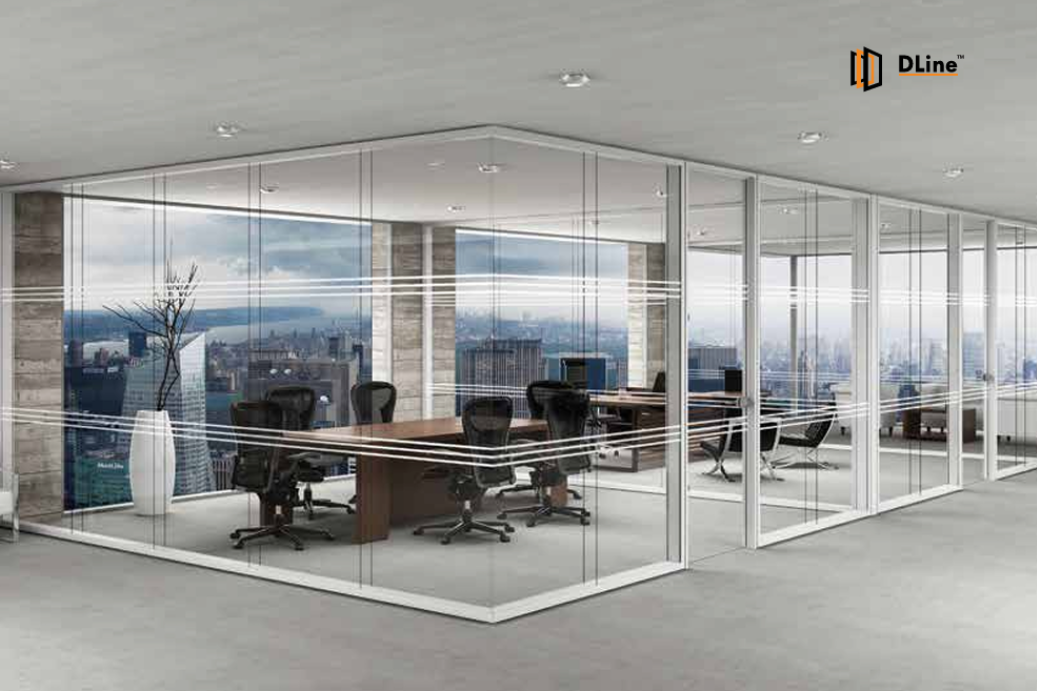

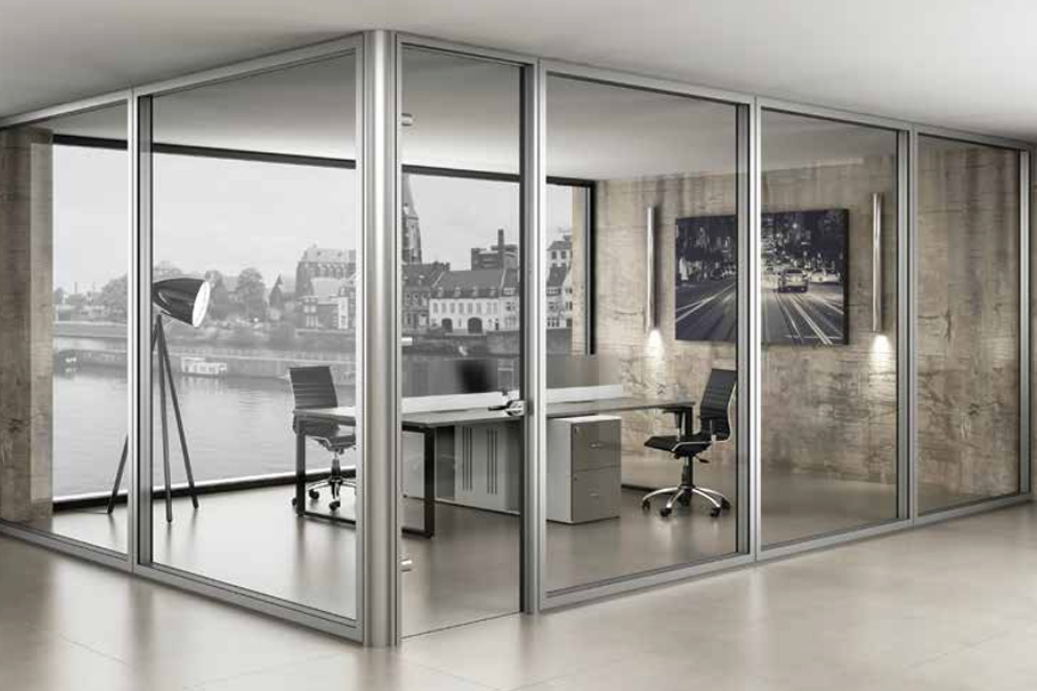

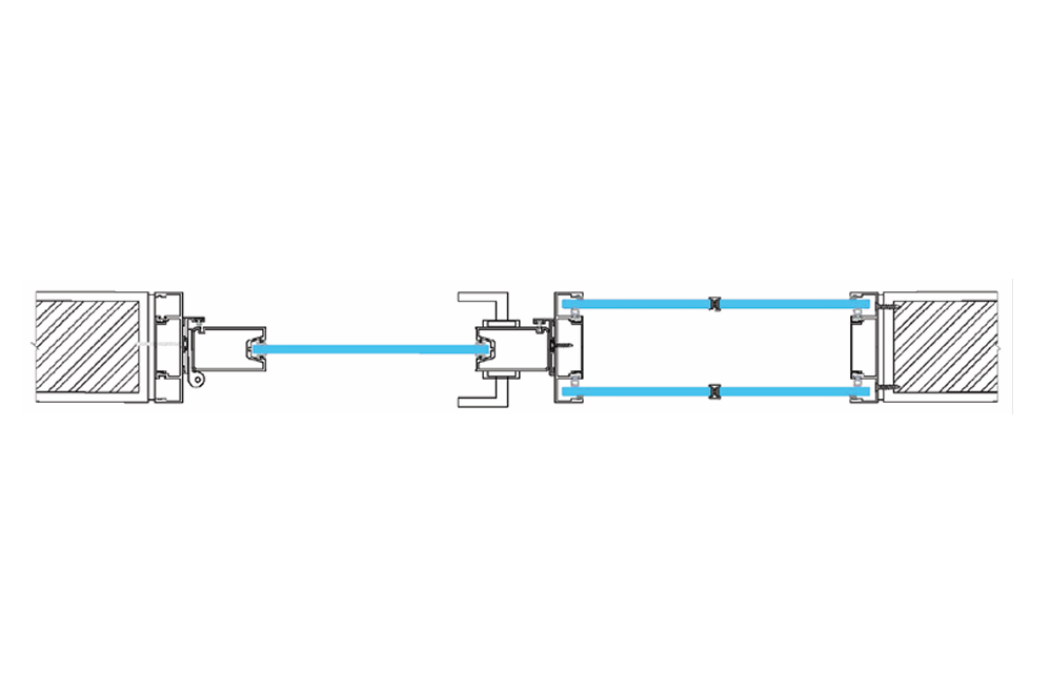

The Wide Double Glaze demountable partition system offers the same strength and sturdiness as the Wide Glaze system. Wide Double Glaze consists of dual tracks for double glazing with a 75mm air gap in between which provides high acoustical insulation and climate control. Grid pattern glass partition using our wide double glaze profile array is Vantage’s most premium solution.

Key Features

• Section Variants (height x width): 25x100mm
• Matt Silver and Matt Black Anodised Finish available, other finishes available on request
• Glass Supported: 10 and 12mm thickness
• Double Glazing System
• Acoustical Insulation: 40 dB
• Stable up to a height of 3000mm

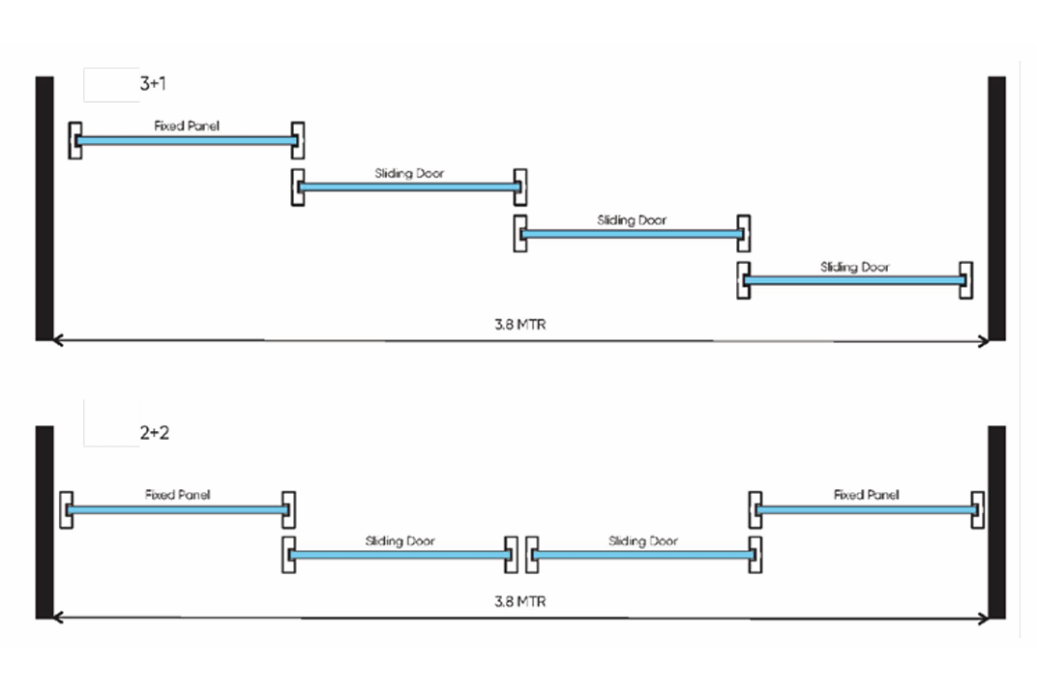

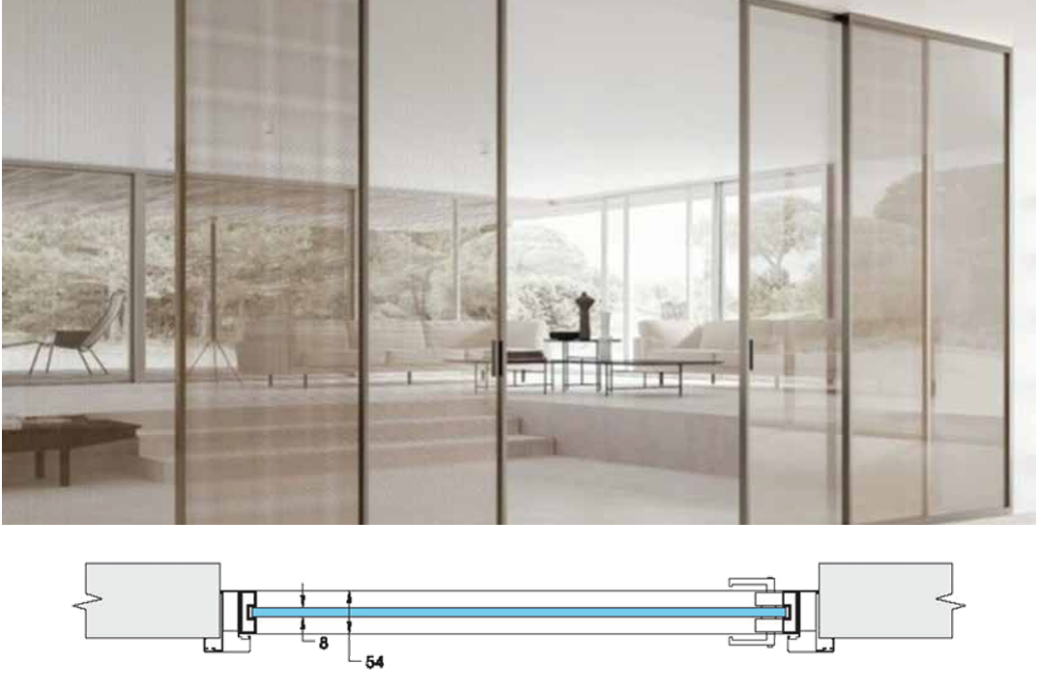

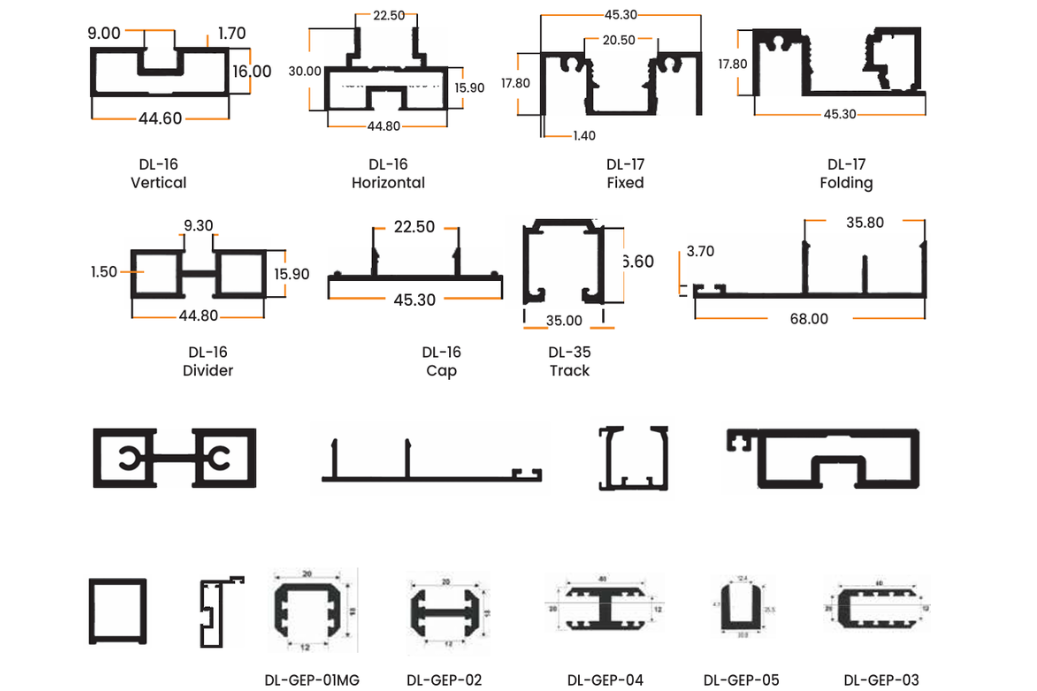

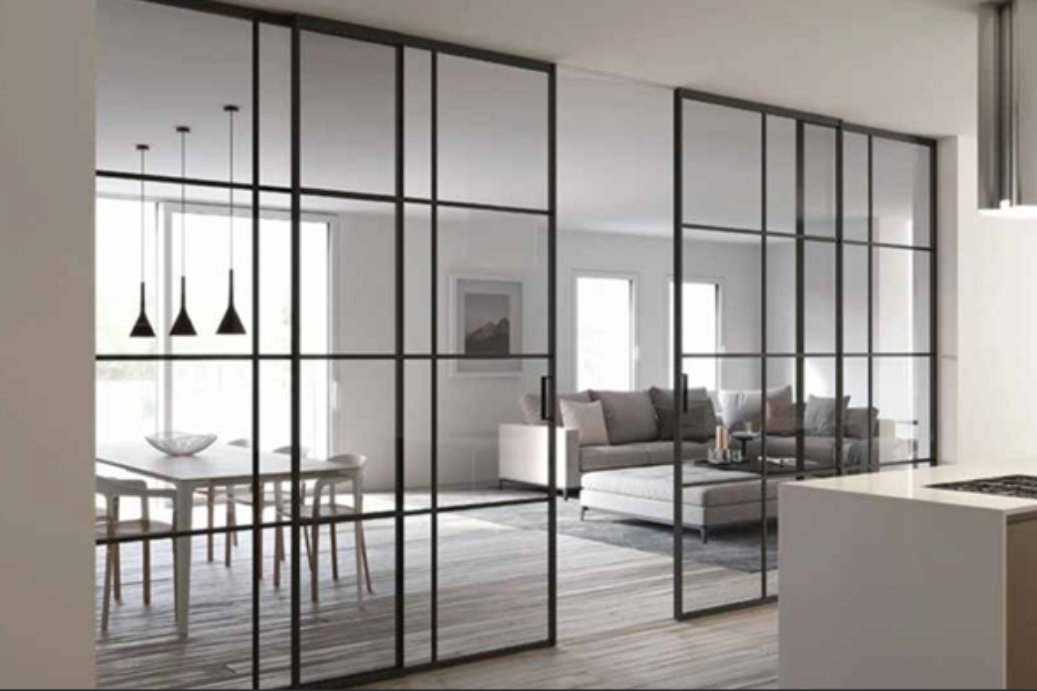

The 16 x 45mm Slimline Profile is designed for minimal and contemporary interiors, offering a refined frame appearance while maintaining reliable structural performance for glass partition applications.

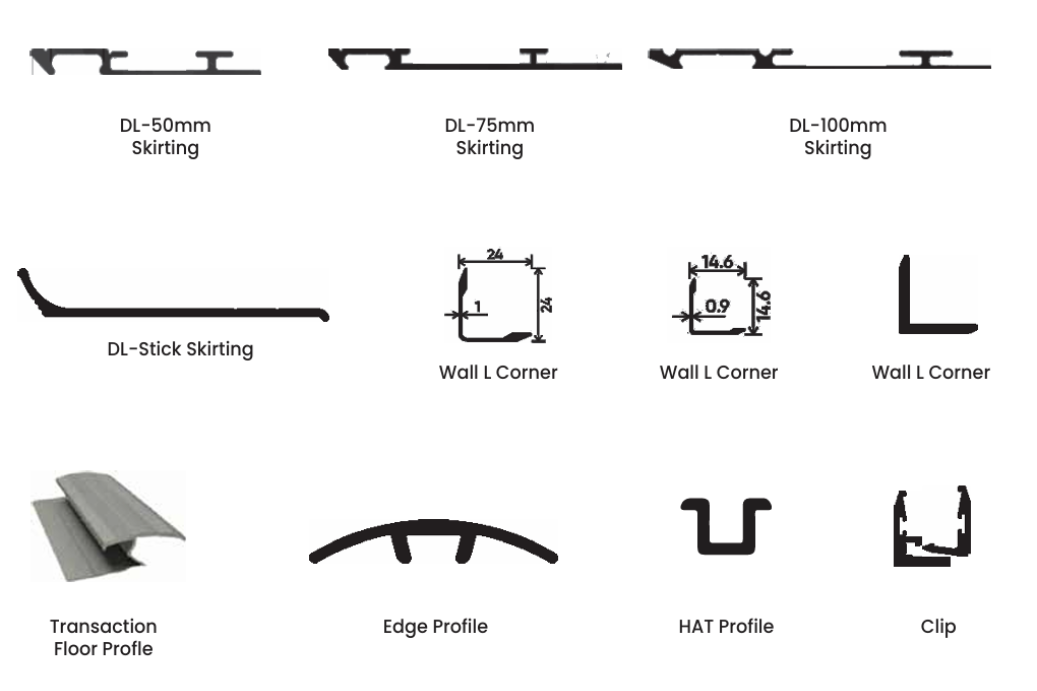

Skirting and floor guide components are designed to support neat alignment, stronger base anchoring, and long-term durability for partition systems in high-use interiors.

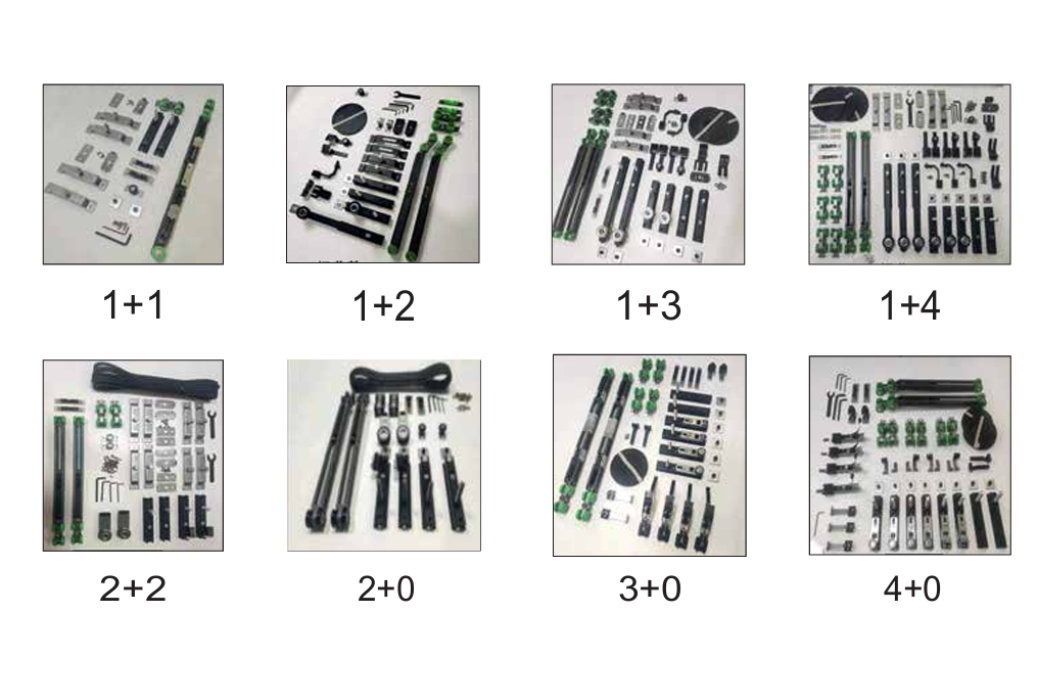

Sliding Wheels Slim Profile is built for smooth, controlled movement in sliding partition applications, combining sleek aesthetics with reliable mechanical performance.

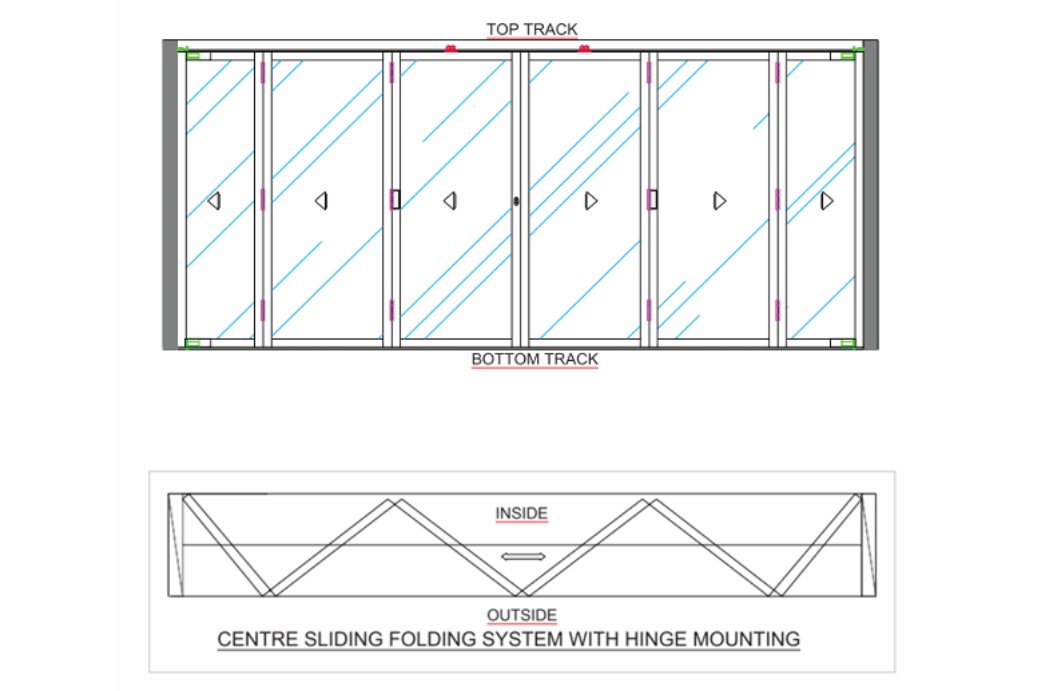

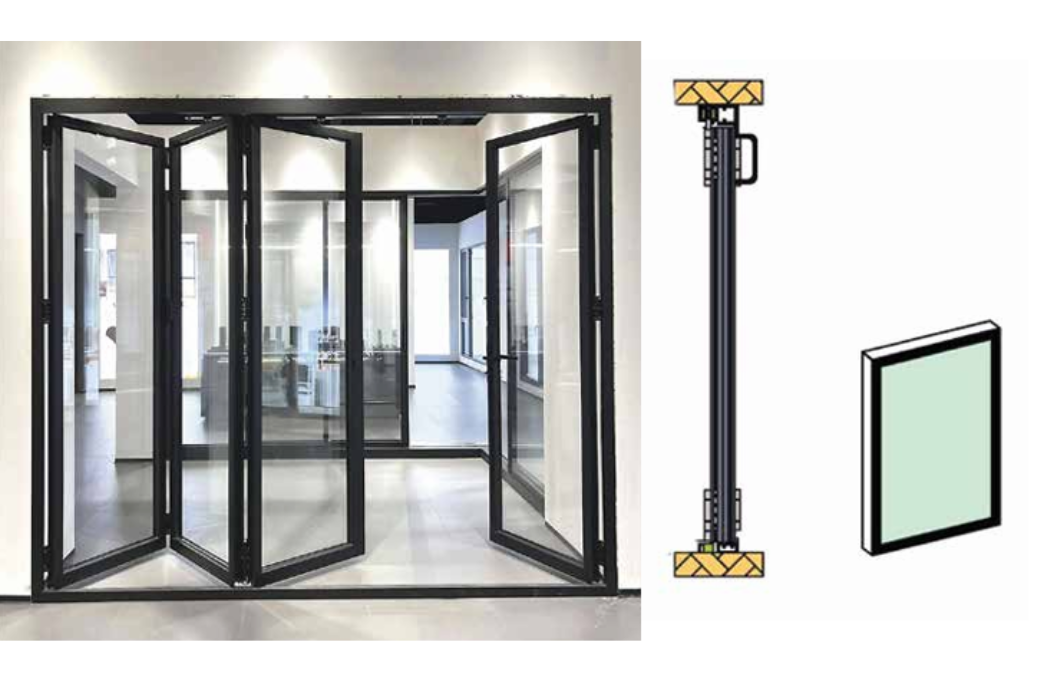

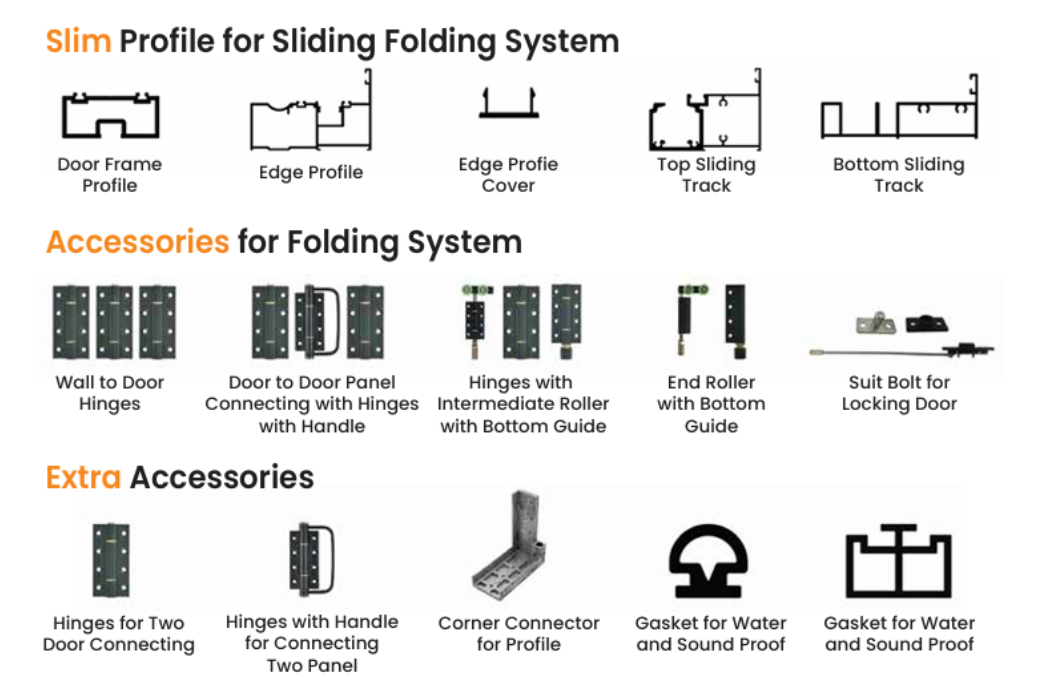

Dline Sliding Folding partition system is designed to divide a large space into compartments with the flexibility of being able to quickly re-arrange the partition so as to merge the divided compartments back into one large space.

Key Features

• Frameless and Stile Shutter Options available
• Glass Supported: 10mm thickness
• Single Glazed Sliding Folding System
• Maximum Single Shutter Leaf: 3000mm(h) x 900mm(w)

A complete profile fitting portfolio for modern interior systems, combining smooth functionality, premium aesthetics, and durable engineering across sliding, shower, and partition applications.

Key Solutions

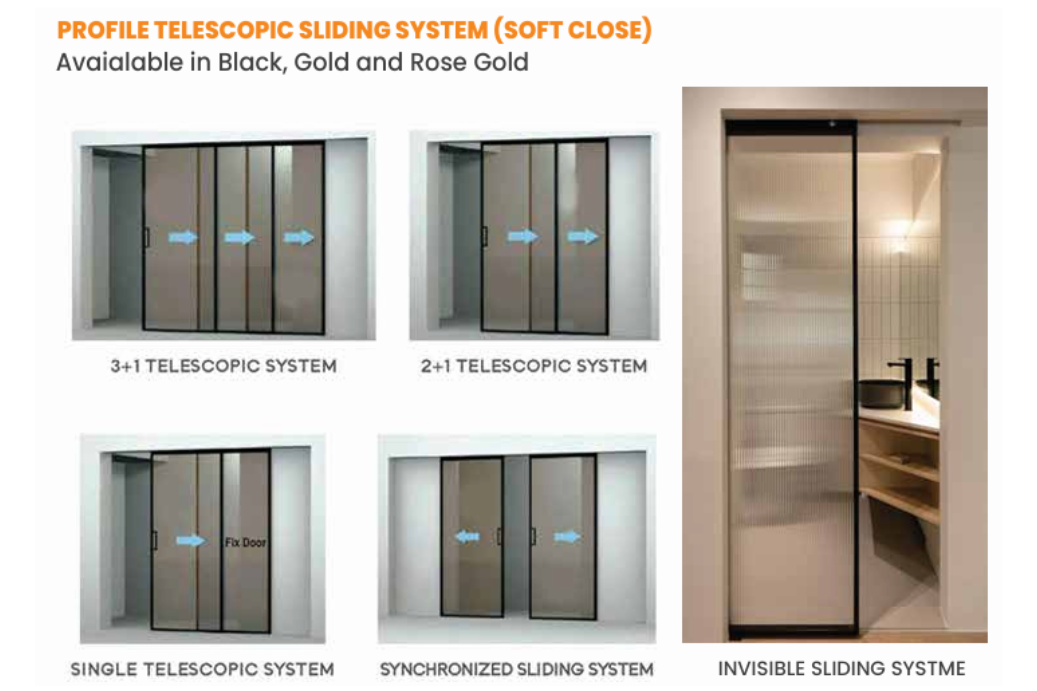

• Profile Telescopic Sliding System (Soft Close)
• Available finishes: Black, Gold, and Rose Gold

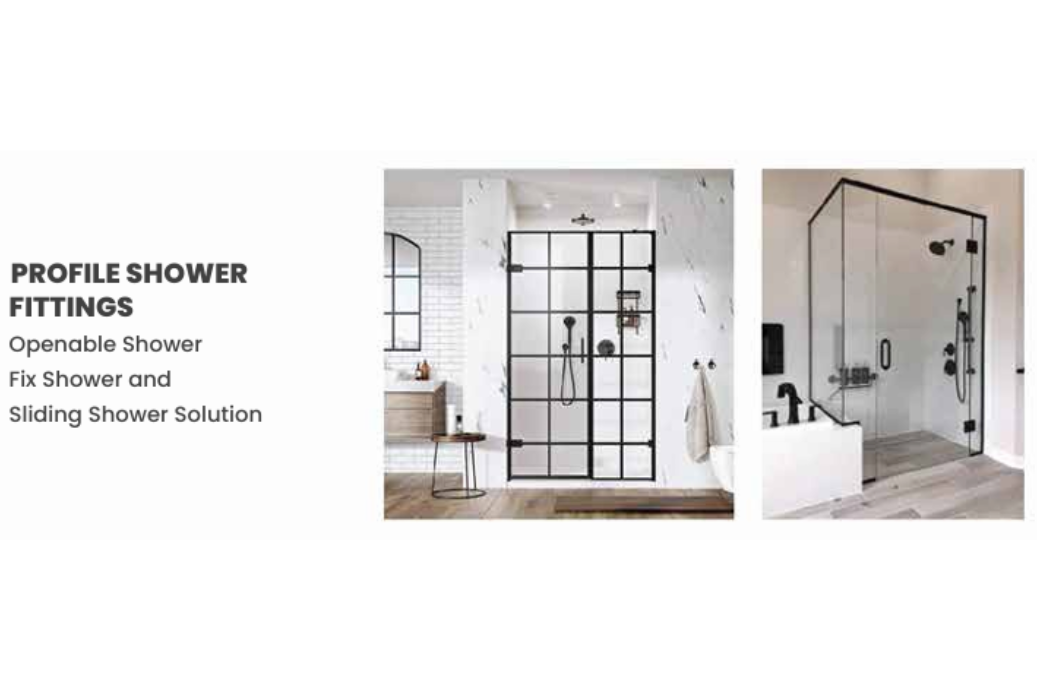

• Profile Shower Fittings: Openable shower, fixed shower, and sliding shower solutions

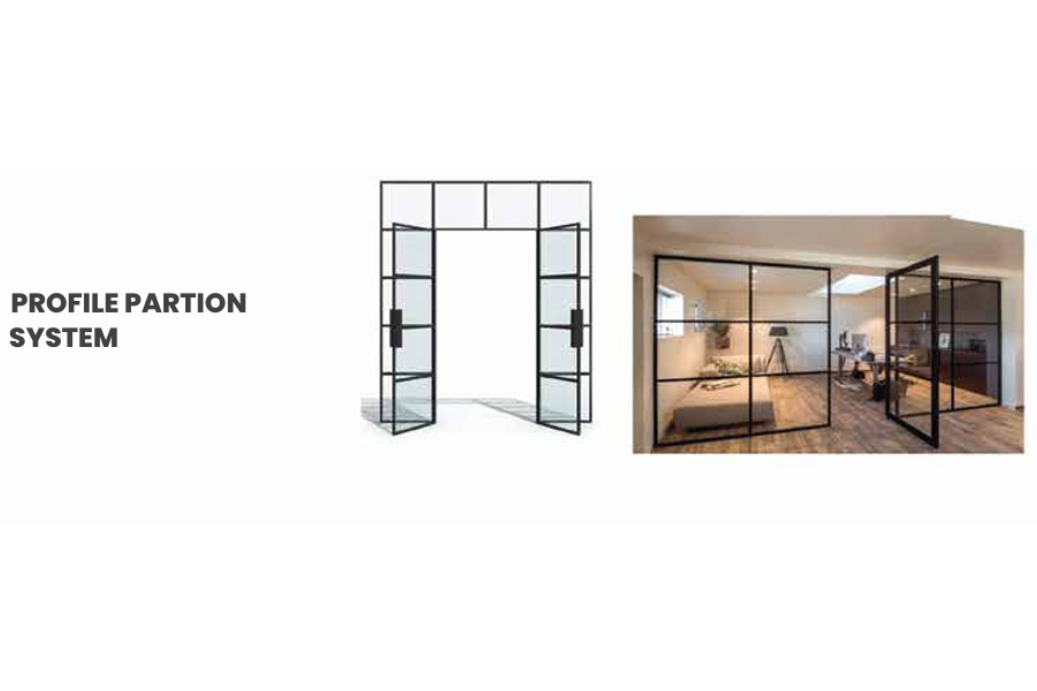

• Profile Partition System for clean and adaptable interior layouts
